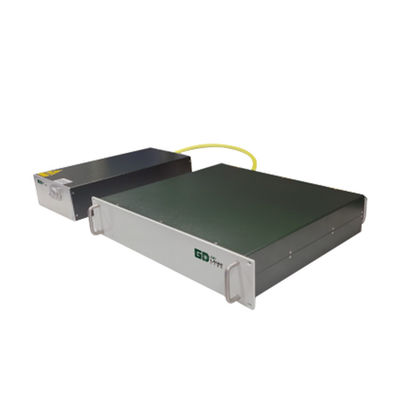

100W QCW Green Fiber Lasers Highe Power Laser Source for Cutting Drilling Welding 200W 300W 500W

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Model Number GNPL-100-20
Minimum Order Quantity 1 set
Price Price negotiable
Packaging Details Wooden case packing, 1 set/box
Delivery Time 20 work days
Payment Terms D/P, L/C
Supply Ability 100 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wavelength 532nm Working Mode QCW
Pulse Width <1.5ns Repetition Frequency 5~20MHz
Beam Quality M²<1.3 Refrigeration Mode Water Cooling
Overall Size 439x397x88+200x400x88mm
Leave a Message
Product Description

Product Description:



100W QCW Green Fiber Lasers Highe Power Laser Source for Cutting Drilling Welding 200W 300W 500W 0




QCW Green Fiber Lasers Gongda laser industrial grade fiber green quasi-continuous laser has the characteristics of stability and reliability, which ensures economy while supporting high-precision processing. The laser adopts an optical and electrical integrated design. This series of products can be widely used in materials micromachining, solar/photovoltaic industry processing, brazing, glass-based ink removal/marking, PVD removal, and other fields.



Features:

  1. Output wavelength: 532nm
  2. Output power up to 500w
  3. Pulse width: 1ns ~ 1.5ns
  4. Water-cooled, compact structure, stable operation5. Integrated optical and electrical design

Technical Parameters:


Product model Unit GNPL-100-20 GNPL-200-20 GNPL-300-30 GNPL-500-25
Wavelength nm 532

Working mode
  QCW
Average power W
>100

>200

>300

>500

Pulse width
ns <1.5

Repetition frequency
MHz 5 10 10 20

Beam quality
  M²<1.3

Spot roundness

%

>90%

Beam diameter

mm

3~7,1/e²

Polarization ratio

-

>100:1
Polarization state
-
Linear

Pulse stability
RMS
<2%RMS

Power stability
RMS
<2%RMS
Working temperature

0~35

Refrigeration mode

-

Water Cooling
Overall size mm 439x397x88+200x400x88


Applications:

  • Material micromachining
  • Solar/ photovoltaic industry processing
  • Glass-based ink removal/marking
  • FPC cover film cutting
  • Cutting of lithium positive and negative electrode materials
  • Cutting and welding of high-reaction materials

Support and Services:

The Green Fiber Laser product comes with comprehensive technical support and services to ensure that it operates at peak performance. Our team of experienced technicians and engineers are available to assist with installation, troubleshooting, and maintenance. We also offer the following services:

  • Training for operators and maintenance personnel
  • Remote technical support
  • On-site repair services
  • Customization and integration with existing systems
  • Upgrades and retrofitting
  • Our goal is to provide our customers with the highest level of support and service to minimize downtime and maximize productivity.

Packing and Shipping:

Product Packaging:

  • 1 Green Fiber Laser
  • 1 Power Cord
  • 1 User Manual

Shipping:

  • Shipping Method: UPS Ground
  • Delivery Time: 3-5 business days
  • Free standard shipping within the US
  • Tracking Number: You get it after the item ship

    100W QCW Green Fiber Lasers Highe Power Laser Source for Cutting Drilling Welding 200W 300W 500W 1


FAQ:

Q: Is the price negotiable?

A: Yes, the price of this product is negotiable.

Q: What are the payment terms for this product?

A: The payment terms for this product are D/P and L/C.

Q: What is the supply ability per month for this product?

A: The supply ability per month for this product is 100 sets.

Q: What is the delivery time for this product?

A: The delivery time for this product is 20 work days.

Q: What are the packaging details for this product?

A: The packaging details for this product are wooden case packing, and 1 set/box.
