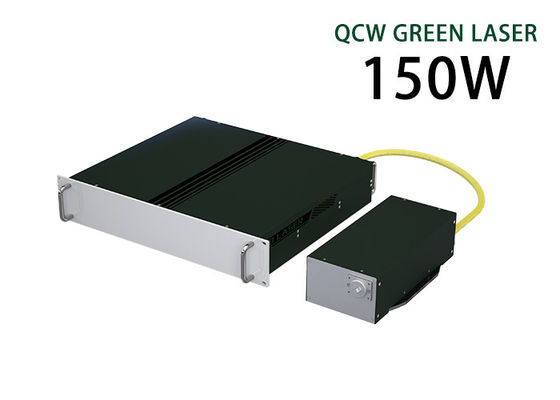

150W Green Ipg QCW Laser Single Mode Nanosecond Fiber Laser

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Model Number EO-LIGHT-QCW-3
Minimum Order Quantity 1 set
Price Negotiate price
Packaging Details Wooden case packing, 1 set/box
Delivery Time 10 work days
Payment Terms D/P, L/C
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Wavelength 532nm 532nm 150W
Pulse Width <1.5ns Repetition Frequency 10MHz
Beam Quality M2<1.3 Polarization Ratio >100:1
High Light

Single Mode Ipg QCW Laser


Nanosecond Ipg QCW Laser


150W Green Laser

Leave a Message
Product Description

150W Single mode nanosecond QCW green fiber laser


Product introduction of QCW green fiber laser:


We are the unique green fiber laser source manufacturer in China.

High power QCW green laser has the characteristics of stability and reliability, and ensures economy while supporting high-precision processing. The laser adopts the integrated design of light and electricity. This series of products can be widely used in material micro processing, solar / photovoltaic industry processing, high anti metal welding and cutting, glass based ink removal / marking, PVD removal and other fields.


Product features of QCW green fiber laser:


1. Output wavelength 532nm

2. Output power up to 500W

3. Pulse width 1ns ~ 1.5ns

4. Water cooling, compact structure and stable operation

5. Integrated optical and electrical equipment


Product application of QCW green fiber laser:


1. Material micromachining

2. Solar / photovoltaic industry processing

3. Glass based ink removal / marking

4. FPC covering film cutting

5. PVD removal

6. Cutting and welding of high reflection materials


150W Green Ipg QCW Laser Single Mode Nanosecond Fiber Laser 0

Technical parameter of QCW green fiber laser:


Product model Unit EO-LIGHT-QCW-3
Wavelength nm 532
Working mode   QCW
Average power W 50/60/70/80/90/100 120/150/200/250 300/350/400 450/500
Pulse width ns <1.5
Repetition frequency MHz 5 10 10 20
Beam quality - M2<1.3
Spot roundness % >90%
Beam diameter mm 3~7 ,1/e2
Polarization ratio - >100:1
Polarization state - Linear
Pulse stability RMS <2% RMS
Power stability RMS <2% RMS
Working temperature 0~35
Refrigeration mode - Water Cooling
Overall size mm 700x347x161+439x397x88
