500W CW Green Fiber Laser Source Continuous Wave Lasers for Laser Welding Copper Printing 300W 700W 1000W

Place of Origin SHENZHEN, CHINA
Brand Name GD Laser
Certification CE
Model Number GCL-500-F-S-W
Minimum Order Quantity 1 set
Price Price negotiable
Packaging Details Wooden case packing, 1 set/box
Delivery Time 20 work days
Payment Terms D/P, L/C
Supply Ability 100 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wavelength 532nm Working Mode Continuous /modulation
Central Wavelength 531~533nm Repetition Frequency 5kHz
Rated Power Consumptioncy Module Size 4.5KW Basic Frequency Module Size 645*482.6*155mm
Refrigeration Mode Water-cooling Octave Module Size 703.3*296*156mm
Leave a Message
Product Description

Product Description:

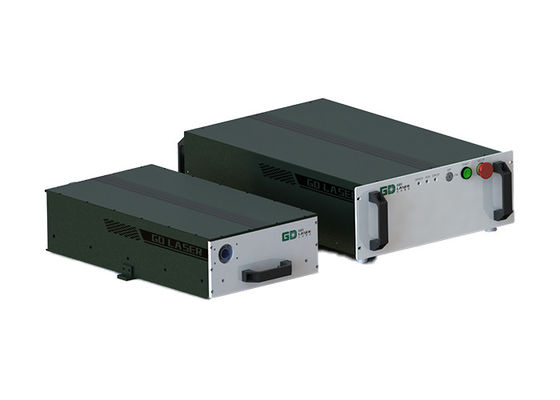

500W CW Green Fiber Laser Source Continuous Wave Lasers for Laser Welding Copper Printing 300W 700W 1000W 0





CW Green Fiber Laser Source Gongda laser has launched a 500W continuous single-mode green laser, which adopts free space output to ensure excellent beam quality, aiming at pain points such as severe spattering when welding high reflection materials in the infrared band. The laser can also provide a flexible transmission mode coupled to the optical fiber, which can be more conveniently matched with automatic control and applied to the welding process of high-reactive materials such as copper. Because of its good output power stability, excellent beam quality, and excellent absorption characteristics of copper materials, it can also be used in 3D printing process applications of pure copper materials.



Features:

  1. Suitable for welding copper and other high-reaction materials
  2. Compared with an infrared laser, there is almost no spatter in the welding process
  3. Faster absorption and high repeatability
  4. Higher absorption rate, completely stable and reliable copper welding process

Technical Parameters:


Characteristic Unit Min. Typ. Max.
Average power W 500   550
Working mode   Continuous /modulation
Polarization state - Linear
Central wavelength Nm 531 532 533
Modulation frequency kHz     5
extinction ratio dB 15
Beam quality (M2) -   1.1 1.2
Beam quality % 90 95 100
working voltage AVC V 220
Rated power consumption KW 4.5KW
Basic frequency module size mm 645*482.6*155
Weight of fundamental
frequency module
Kg 36±3
Octave module size mm 703.3*296*156
Weight of frequency doubling
module
Kg 29±3
Refrigeration mode water-cooling
Cooling water temperature 23 24 25


Applications:

  • Material micromachining
  • Solar/ photovoltaic industry processing
  • Glass-based ink removal/marking
  • FPC cover film cutting
  • Cutting of lithium positive and negative electrode materials
  • Cutting and welding of high-reaction materials

Support and Services:

  • Installation support and tutorials
  • Product training and tutorials
  • Remote technical support and troubleshooting
  • Repair and maintenance services
  • Spare parts and accessories
  • Software upgrades and updates
  • Warranty and post-warranty support

Packing and Shipping:

Product Packaging:

  • Green Fiber Laser
  • Power cord
  • Key
  • User manual

Shipping:

  • Shipping method: Standard
  • Estimated delivery time: 5-7 business days
  • Shipping cost: Free
  • Tracking information will be provided via email
500W CW Green Fiber Laser Source Continuous Wave Lasers for Laser Welding Copper Printing 300W 700W 1000W 1





FAQ:

Q1: What is the brand name of the product?

A1: The brand name of this product is GD laser.

Q2: What is the model number of the product?

A2: The model number of this product is GCL-500-F-S-W

Q3: What certifications does the product have?

A3: This product is certified with CE.

Q4: Where is this product made?

A4: This product is made in SHENZHEN, CHINA.

Q5: What are the payment terms and delivery details?

A5: The minimum order quantity for this product is 1 set, and the price is negotiable. We accept payment through D/P and L/C. The supply ability is 100 sets/month and the delivery time is 20 work days. The product is packaged in wooden case packing, with 1 set/box.
Q6: Is the price negotiable?

A6: Yes, the price of this product is negotiable.

Q7: What are the payment terms for this product?

A7: The payment terms for this product are D/P and L/C.

Q8: What is the supply ability per month for this product?

A8: The supply ability per month for this product is 100 sets.

Q9: What is the delivery time for this product?

A9: The delivery time for this product is 20 work days.

Q10: What are the packaging details for this product?

A10: The packaging details for this product are wooden case packing, and 1 set/box.
