Nanosecond continuous wave fiber laser 550W Single Mode
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Central Wavelength | 532nm | Average Power | 550W |
|---|---|---|---|
| Modulation Frequency | 5-20KHz | Beam Quality | 95% |
| Beam Quality( M2) | <1.2 | Rated Power Consumption(kW) | 4.5kw |
| High Light | 550W Continuous Wave Fiber Laser,Nanosecond Continuous Wave Fiber Laser,4.5kw Continuous Wave Fiber Laser |
||
Product Description

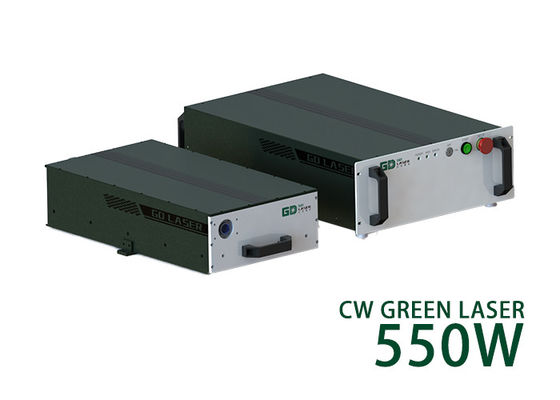

550W Single mode nanosecond CW green fiber laser
Product introduction of CW green fiber laser
Our founder has PhD degree.
Gongda Laser has launched continuous laser with different power, aiming at the pain points such as severe spattering when welding high reflection materials in the infrared band. The green laser adopts the scheme of all fiber fundamental frequency plus external frequency doubling, It has the advantages of high absorption, less splash, high efficiency, high stability, high beam quality and so on. The laser can also provide a flexible transmission mode coupled to the optical fiber, which can be more conveniently matched with automatic control and applied to the welding process of high reactive materials such as copper. Due to its good output power stability, excellent beam quality and high absorption rate of high reflection materials, especially copper.
Product features of CW green fiber laser
1. Suitable for welding copper and other high reaction materials
2. Compared with infrared laser, there is almost no spatter in the welding process
3. Faster absorption and high repeatability
4. Higher absorption rate, completely stable and reliable copper welding process
Product application of CW green fiber laser
1. Cutting and welding of high reaction materials such as copper
Technical parameter of CW green fiber laser
| NO. | Characteristic | Unit | EO-LIGHT-CW-2-500-900 | |
| 1 | Average power | W | 500/550/600/650/700/750/800/900 | |
| 2 | Working mode | - | Continuous /modulation | |
| 3 | Polarization state | - | Linear | |
| 4 | Central wavelength | Nm | 532 | |
| 5 | Modulation frequency | kHz | 5-20 | |
| 6 | extinction ratio | dB | 15 | |
| 7 | Beam quality (M2) | - | <1.2 | |
| 8 | Beam quality | % | 95 | |
| 9 | working voltage AVC | V | 220 | |
| 10 | Rated power consumption | KW | 4.5 | |
| 11 | Basic frequency module size | mm | 665*482.6*177.8 | |
| 12 | Weight of fundamental frequency module | Kg | 36±3 | |
| 13 | Octave module size | mm | 610*330*156 | |
| 14 | Weight of frequency doubling module | Kg | 29±3 | |
| 15 | Refrigeration mode | water-cooling | ||
