High-Power Green Fiber Laser for Welding and Cutting High Reflective Materials

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Model Number EO-LIGHT-CW-2
Minimum Order Quantity 1 set
Price price negotiable
Packaging Details Wooden case packing, 1 set/box
Delivery Time 20 work days
Payment Terms D/P, L/C
Supply Ability 100 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Average Power 3000W Working Mode Continuous/modulation
Polarization State Random Central Wavelength 529Nm
Modulation Frequency 20kHz Long Term Power Stability -1.5%
Extinction Ratio 15dB Output Head QBH
Core Diameter 200um Working Voltage AVC 380v
Maximum Power Consumption 23kw Cabinet Size 1600*1600*1800mm
Refrigeration Mode Water-cooling Cooling Water Flow Rate 50L/min
Highlight

High Power Green Fiber Laser

,

High Reflective Materials Green Fiber Laser

,

Welding Green Fiber Laser

Leave a Message
Product Description

Product introduction



Gongda Laser has launched a high-power continuous green laser to solve problems such as severe splashing during welding of high reflectivity materials in the infrared band, using a scheme of all fiber fundamental frequency and external cavity doubling. With an output power of up to 3000W, it is currently the highest power continuous green laser source in China. It has advantages such as high repeatability, high absorption rate, less splashing, high stability, and high beam quality.



Product features



1.Laser welding of high reflective materials (copper/aluminum);
2.Semiconductor material processing (silicon carbide, etc);
3.3D printing and cladding of copper metal;
4.Superhard material cutting;
5.Welding of power battery busbars, connecting pieces, etc.



Product application



1. Cutting and welding of high reaction materials such as copper

2. Copper metal 3D printing

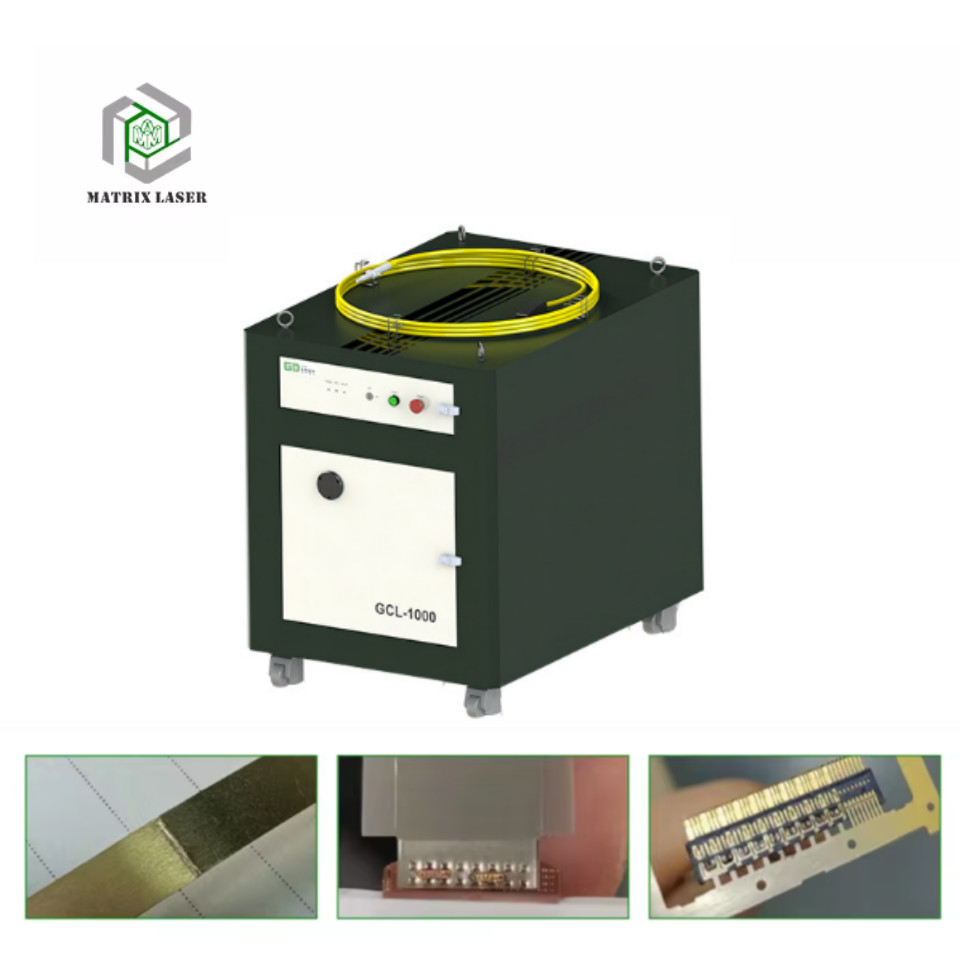

High-Power Green Fiber Laser for Welding and Cutting High Reflective Materials 0



Technical parameter



NO. Characteristic Unit Min. Typ. Max.
1 Average power W 3000 3050
2 Working mode - Continuous /modulation
3 Polarization state - random
4 Central wavelength Nm 529 532 535
5 Modulation frequency kHz     20
6 Long term power stability % -1.5   ﹢1.5
7 extinction ratio dB 15
8 Bundle quadrature BPP mm*mrad 8
9 Beam quality % 90 95 100
10 Output head   QBH
11 Core diameter um 200
12 working voltage AVC V 380
13 Maximum power consumption KW 23
14 Cabinet size mm 1600*1600*1800
15 Refrigeration mode   water-cooling
16 Cooling water temperature 23 24 25
17 Cooling water flow rate L/min 50
18 Cooling water interface   ∅33mm




Product size

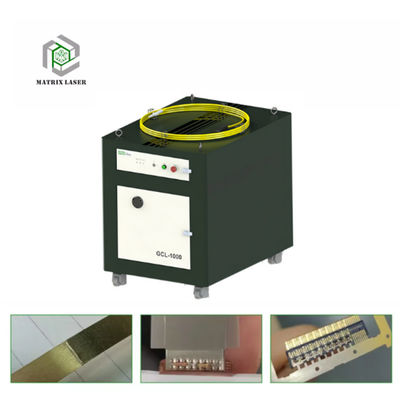

High-Power Green Fiber Laser for Welding and Cutting High Reflective Materials 1
