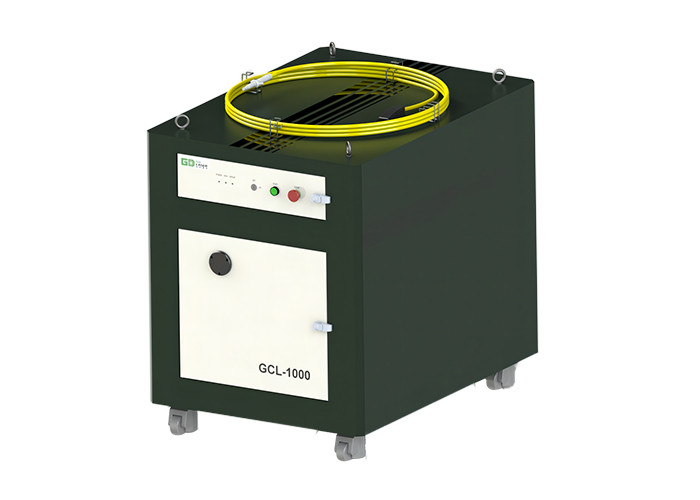

1000W continuous green fiber laser (vertical integrated version)

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Model Number EO-LIGHT-CW-2
Minimum Order Quantity 1 set
Price USD 100000-200000/set
Packaging Details Wooden case packing, 1 set/box
Delivery Time 10 work days
Payment Terms D/P, L/C
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Central Wavelength 532 Average Power 1000W
Working Mode Continuous /modulation Beam Quality <12
Refrigeration Mode Water Cooling Output Head QBH
Cabinet Size 1300*900*900
Leave a Message
Product Description

Product introduction


Gongda laser has launched a 1000W continuous single-mode green laser gcl-1000, which uses free space output to ensure excellent beam quality, aiming at the pain points such as severe spattering when welding high reflection materials in the infrared band. The laser can also provide a flexible transmission mode coupled to the optical fiber, which is more convenient for matching automatic control, and is widely used in the welding process of high reactive materials such as copper. Because of its good output power stability, excellent beam quality, and excellent absorption characteristics of copper materials, it can also be used for 3D printing of pure copper materials.


Product features


1. Suitable for welding copper and other high reaction materials

2. Compared with infrared laser, there is almost no spatter in the welding process

3. Faster absorption and high repeatability

4. Higher absorption rate, completely stable and reliable copper welding process


Product application


1. Cutting and welding of high reaction materials such as copper

2. Copper metal 3D printing

1000W continuous green fiber laser (vertical integrated version) 0


Technical parameter



Characteristic Unit EO-LIGHT-CW-2
Central wavelength mm 510~550
Average power W 980~ 1050
Working mode - Continuous / modulation
Polarization state



Modulation frequency KHz 0~ 1000
Long term power stability % <4
M2 Beam quality M2



Fiber core diameter mm 50
Armor cable length m 10
working voltage AVC V 220
Maximum power consumption KW <6.5
Cabinet size mm 1300*900*900
Working temperature oC 10-35
Storage temperature oC -10-60
Refrigeration mode water-cooling
Cooling water temperature 23~25
