Large Bracket Automatic Switching Laser Cutting Machine 120m/min

  • Large Bracket Automatic Switching Laser Cutting Machine 120m/min
Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Minimum Order Quantity 1 set
Price Negotiate price
Packaging Details Wooden case packing, 1 set/box
Delivery Time 10 work days
Payment Terms D/P, L/C
Supply Ability 100 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 1000W-6000W Electricity Demand 380V
Cooling Method Water Cooling X/Y Axis Fast Moving Speed 120m/min
X/Y Positioning Accuracy ±0.03mm X/Y Axis Repeatability ±0.05mm
Highlight

Automatic Switching Laser Cutting Machine

,

Large Bracket Laser Cutting Machine

,

6KW Laser Cutting Machine
Leave a Message
Product Description

Large Bracket Automatic Switching Laser Cutting Machine​



1, Product introduction

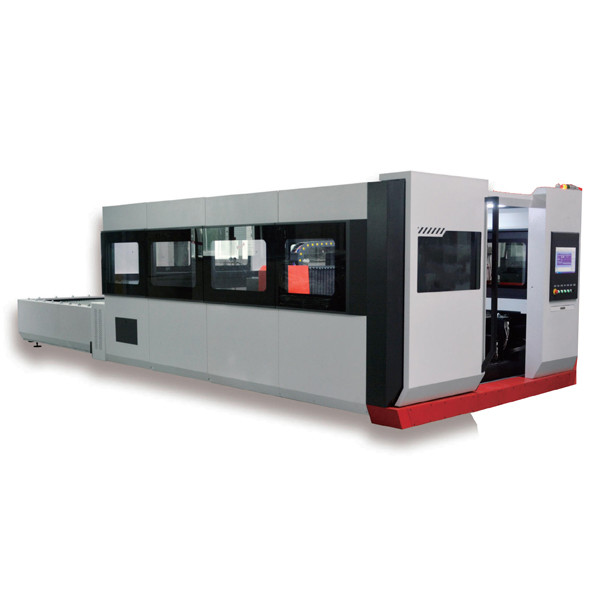

Large Bracket Automatic Switching Laser Cutting Machine 120m/min 0



2, technical parameter



Model DPE-F3015D DPE-F4020D
Laser source type Fiber source Fiber source



Laser wavelength

 1070nm 1070nm
Laser output power 500W-6000W 1000W-6000W
Processing area 3000x1500mm 4000x2000mm

Minimum line width

 < 0.1mm < 0.1mm
Transfer method Precision rack dual drive

Precision rack dual drive
Cutting speed and thickness Depending on the specific material Depending on the specific material
Repeatability ±0.02mm ±0.02mm

Machine operating temperature 0 ~ 40°C 0 ~ 40°C
Electricity demand 380V/50HZ 380V/50HZ
Cooling method Water cooling Water cooling
Continuous operating time 24 hours 24 hours
Weight 8000kg-12000kg 9000kg-13000kg
Dimensions 8500*2950*1900mm 10500*3450*2000mm
Maximum operating speed 120m/min 120m/min
Maximum acceleration 1.5G 1.5G
X/Ypositioning accuracy 0.03mm 0.03mm
Minimum slit width 0.15mm 0.15mm





3. Application display



Large Bracket Automatic Switching Laser Cutting Machine 120m/min 1
