1070nm Single Table Fiber Laser Cutter 380V / 50Hz Electricity Demand

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Minimum Order Quantity 1 set
Price Negotiate price
Packaging Details Wooden case packing, 1 set/box
Delivery Time 10 work days
Payment Terms D/P, L/C
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 510W-1000W Electricity Demand 380V
Cooling Method Water Cooling X/Y Axis Fast Moving Speed 100m/min
X/Y Positioning Accuracy ±0.03mm X/Y Axis Repeatability ±0.05mm
High Light

CE Fiber Laser Cutter

,

1070nm Fiber Laser Cutter

,

1000W Fiber Laser Cutting Machine

Leave a Message
Product Description

Single table fiber laser cutting machine



1, Product introduction

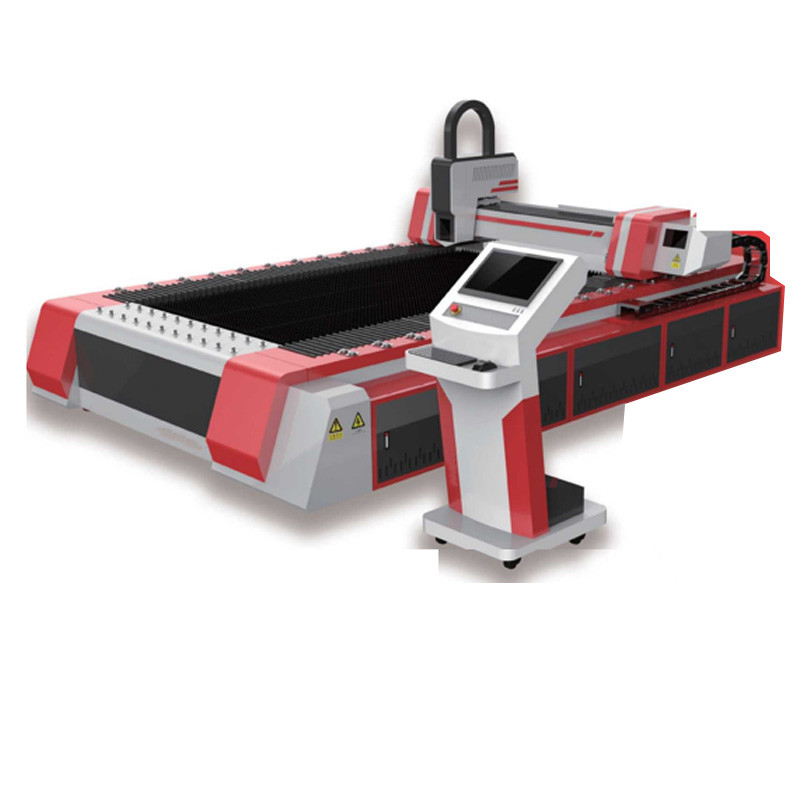

1070nm Single Table Fiber Laser Cutter 380V / 50Hz Electricity Demand 0



2, technical parameter



Model DPE-F3015 DPE-F4015 DPE-F4020 DPE-F6020
Laser source type Fiber source Fiber source Fiber source Fiber source
Laser wavelength 1070nm 1070nm 1070nm 1070nm
  mnw.mnnw   RnnA/-AAAAA/ RonA/-AnnnA/
Laser output power
Cutting range 3000x1500mm 4000x1500mm 4000 x2000mm 6000x2000mm
Minimum line width < 0.1mm < 0.1mm < 0.1mm < 0.1mm
Transfer method Precision rack dual drive Precision rack dual drive Precision rack dual drive Precision rack dual drive
 Cutting speed and thickness Depending on the specific material Depending on the specific material  Depending on the specific material Depending on the specific material
 Repeatability ±0.02mm ±0.02mm ±0.02mm ±0.02mm
 Machine operating temperature 0 ~ 40°C 0 ~ 40°C 0 ~ 40°C 0 ~ 40°C
Electricity demand 380V/50Hz 380V/50HZ 380V/50Hz 380V/50Hz
Cooling method Water cooling

Water cooling

Water cooling

Water cooling
Continuous operating time 24 hours 24 hours 24 hours 24 hours
Weight 4800kg 4800kg 4800kg 4800kg
 Dimensions 4700mmx2700mm x2000mm 5700mm x2680mmx2000mm 5700mm x 3180mm x 2700mm 7900mm x 2180mm x 2700mm
Maximum operating speed 120m/min 120m/min 120m/min 120m/min
Maximum acceleration 1.2G 1.2G 1.2G 1.2G
 X/Ypositioning accuracy 0.03mm 0.03mm 0.03mm 0.03mm
Minimum slit width 0.15mm 0.15mm 0.15mm 0.15mm





 3. Application display



1070nm Single Table Fiber Laser Cutter 380V / 50Hz Electricity Demand 1
