532nm 650W Linear CW Fiber Laser Single Mode Nanosecond

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Model Number EO-LIGHT-CW-2
Minimum Order Quantity 1 set
Price Negotiate price
Packaging Details Wooden case packing, 1 set/box
Delivery Time 10 work days
Payment Terms D/P, L/C
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Central Wavelength 532nm Average Power 650W
Modulation Frequency 5-20KHz Beam Quality 95%
Beam Quality( M2) <1.2 Polarization State Linear
High Light

650W CW Fiber Laser

,

Linear CW Fiber Laser

,

532nm Fiber Laser

Leave a Message
Product Description

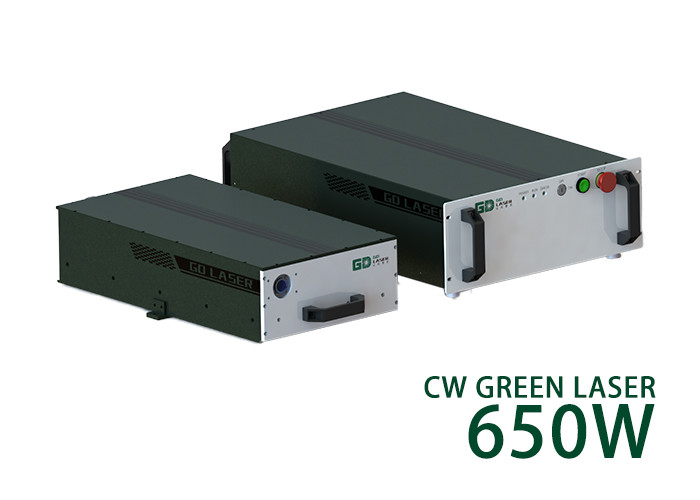

650W Single mode nanosecond CW green fiber laser



Product introduction of CW green fiber laser



Our Chief Sceientist Jian Shuisheng is a Academician of Chinese Academy of Sciences.

Gongda Laser has launched continuous laser with different power, aiming at the pain points such as severe spattering when welding high reflection materials in the infrared band. The green laser adopts the scheme of all fiber fundamental frequency plus external frequency doubling, It has the advantages of high absorption, less splash, high efficiency, high stability, high beam quality and so on. The laser can also provide a flexible transmission mode coupled to the optical fiber, which can be more conveniently matched with automatic control and applied to the welding process of high reactive materials such as copper. Due to its good output power stability, excellent beam quality and high absorption rate of high reflection materials, especially copper.



Product features of CW green fiber laser



1. Suitable for welding copper and other high reaction materials

2. Compared with infrared laser, there is almost no spatter in the welding process

3. Faster absorption and high repeatability

4. Higher absorption rate, completely stable and reliable copper welding process



Product application of CW green fiber laser



1. Cutting and welding of high reaction materials such as copper



Technical parameter of CW green fiber laser



NO. Characteristic Unit EO-LIGHT-CW-2-500-900
1 Average power W 500/550/600/650/700/750/800/900
2 Working mode - Continuous /modulation
3 Polarization state - Linear
4 Central wavelength Nm 532
5 Modulation frequency kHz 5-20
6 extinction ratio dB 15
7 Beam quality (M2) - <1.2
8 Beam quality % 95
9 working voltage AVC V 220
10 Rated power consumption KW 4.5
11 Basic frequency module size mm 665*482.6*177.8
12 Weight of fundamental frequency module Kg 36±3
13 Octave module size mm 610*330*156
14 Weight of frequency doubling module Kg 29±3
15 Refrigeration mode   water-cooling
