High Efficiency 60W CW Fiber Laser Single Mode Nanosecond

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Model Number EO-LIGHT-CW-2
Minimum Order Quantity 1 set
Price Negotiate price
Packaging Details Wooden case packing, 1 set/box
Delivery Time 10 work days
Payment Terms D/P, L/C
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Central Wavelength 532nm Average Power 60W
Cooling Mode Water-cooling Maximum Modulation Frequency(KHz) 5KHz
Beam Quality( M2) <1.3 Rated Power Consumption(kW) 1.2kw
High Light

532nm CW Fiber Laser

,

high efficiency CW Fiber Laser

,

60W Fiber Laser

Leave a Message
Product Description

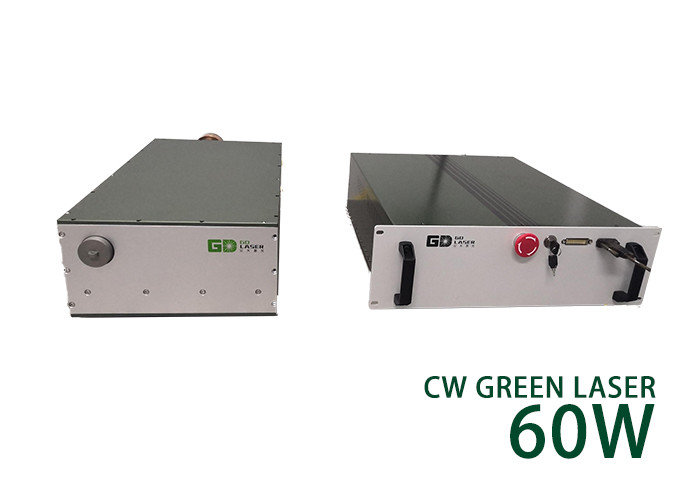

60W Single mode nanosecond CW green fiber laser



Product introduction of CW green fiber laser



We are the biggest green fiber laser source manufacturer in China.

Gongda Laser has launched continuous laser with different power, aiming at the pain points such as severe spattering when welding high reflection materials in the infrared band. The green laser adopts the scheme of all fiber fundamental frequency plus external frequency doubling, It has the advantages of high absorption, less splash, high efficiency, high stability, high beam quality and so on. The laser can also provide a flexible transmission mode coupled to the optical fiber, which can be more conveniently matched with automatic control and applied to the welding process of high reactive materials such as copper. Due to its good output power stability, excellent beam quality and high absorption rate of high reflection materials, especially copper.



Product features of CW green fiber laser



1. Suitable for welding copper and other high reaction materials

2. Compared with infrared laser, there is almost no spatter in the welding process

3. Faster absorption and high repeatability

4. Higher absorption rate, completely stable and reliable copper welding process



Product application of CW green fiber laser



1. Cutting and welding of high reaction materials such as copper



Technical parameter of CW green fiber laser



MODE EO-LIGHT-CW-2-20~450
Average power (W) 20/30/40 50/60/70/80/90 100/120/150 200/250 300/350/400/450
Working mode Continuous /modulation
Maximum modulation frequency(KHz) 5
Central wavelength(nm) 532 (±3)
Bandwidth 3dB(nm) <1
Long term power stability(%) <3
Beam quality( M2) <1.3
Operating voltage (VAC) 220V
Rated power consumption(kW) 0.6 1.2 1.6 2 2.5
Working environment temperature(℃) 5~35
Cooling mode water-cooling




Product size

High Efficiency 60W CW Fiber Laser Single Mode Nanosecond 0

High Efficiency 60W CW Fiber Laser Single Mode Nanosecond 1
