Fiber Portable Laser Obstacle Rust Remover Litter Removal Cleaning Machine And Explosive Ordnance Disposal Power Line

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Model Number Gd-300qz
Minimum Order Quantity 1 set
Price Negotiate price
Packaging Details Wooden case packing, 1 set/box
Delivery Time 20work days
Payment Terms D/P, L/C
Supply Ability 50 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 300W Laser Wavelength 1080nm
Working Effective Distance 50-300m Continuous Working Time 30~60Min(single Lithium Battery)
Total System Weight <76kg(according To Different Power Models) Host Size <711*601*354mm
High Light

fiber portable Laser Obstacle Remover

,

Explosive Ordnance Disposal Laser Obstacle Remover

,

Litter Removal Laser Obstacle Remover

Leave a Message
Product Description

300W power grid laser obstacle remover



Productintroduction

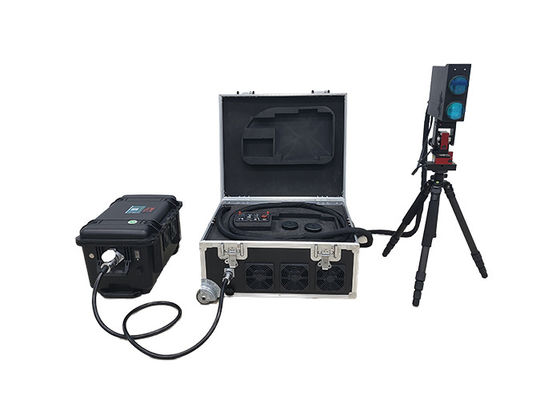

Gd-300qz Series Portable Laser obstacle remover of Gongda laser realizes long-distance (50~300m) and high-power operation.At thesame time,the integrated equipment is easy to carry outdoors and easy to operate.It is mainly used to clean and remove kites, kite lines,plastic bags,advertising cloth,bird's nest, branches and other foreign matters on overhead lines.It can also be used for ammunition laser removal .

Fiber Portable Laser Obstacle Rust Remover Litter Removal Cleaning Machine And Explosive Ordnance Disposal Power Line 0



Product features



1.Remote(working distance50-300m),short operation time(seconds to minutes),noclimbing.

2.Thereis no need forpower cut operation,which will not affect people's livelihood and economy.

3.Remote monitoring function,real-time wireless transmissionofon-site operation,equipment statusandother informa-

tion back to the platform.

4. The precise control of the laser is realized by controlling the light output direction of the laser through the electronic PTZ.

5.Night vision function to meet the requirements of night operation.

6. The whole process of obstacle removal has the function of video recording.

7. The operation is simple and can be controlled by touching the tablet or mobile phone Bluetooth.

8.Equipped with high magnification telescope and red/Green two-color auxiliary indicator,it can workall day. 9.Stable performance,can work continuously at high temperature (40 ℃).



Safety performance



1.Biometric safety protection function: the laser transmitter has the peripheral safety protection function,and can stop the light in the fan-shaped area within the range of light outlet not less than 10 meters.Ifsomeone or animal passes by, it has the function of personnel active safety detection.

2.The equipment dumping protection function automatically cuts off the power supply when the equipment is dumped to prevent accidental injury to nearby personnel. The front foreign object detection function can detect the intrusion of foreign objects in front and send an alarm to automatically cut off the power supply.

3.Equipment risk control function,real-time monitoring of equipment location,online remote authorization and elec- tronic fence function,and can track and query historical records at any time.

4.The controller needs to have security control function and can be opened only with password or fingerprint.

5.The obstacle removal equipment has the functions of background software management,authority management, GPSpositioning, use record query and so on.

6.Equipment safety protection,laser emission collimator and sight are provided with dust cover.All components except tripod and mobile power supply can be put into high-strength resin protection box to effectively protect the equipment from external environmental factors.





Product parameters



Product model

GD-300QZ GD-500QZ GD-700QZ GD-1000QZ
Laser power 300W 500W 700W 1000
Effective working distance 0~300M 0~300M 0~400M 0~400M
working temperature -25℃~+40℃ -25℃~+40℃ -25℃~+50℃ -25℃~+50℃
Operating humidity 10%RH~90% RH
Laser wavelength 1080±5nm
Host size 650x526x380mm 650x526x380mm 711x601x353mm 711x601x353mm
Main engine weight ≤40kg ≤40kg ≤55kg ≤55kg
Battery size 340*150*210mm 340*150*210mm 420x320x190mm 420x320x190mm
Battery weight ≤13kg ≤13kg ≤19kg ≤19kg

Single battery

Continuous working time

≥90min ≥90min ≥40min ≥40min
