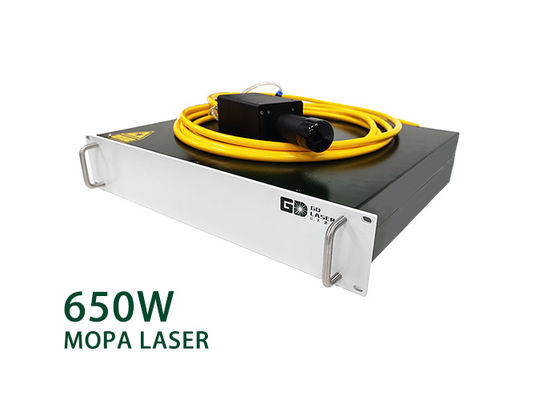

650W 1.5mj Pulsed MOPA Fiber Laser High Power Water Cooled

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Model Number SPECTRAWAVE-MOPA-WATER
Minimum Order Quantity 1 set
Price Negotiate price
Packaging Details Wooden case packing, 1 set/box
Delivery Time 10 work days
Payment Terms D/P, L/C
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Central Wavelength 1060-1080nm Verage Power 650W
Pulse Width 10-500ns Frequency Range 5-10000KHz
Maximum Pulse Energy 1.5mj Beam Quality M2<2
Overall Size 397×439×88
High Light

650W MOPA Fiber Laser

,

1.5mj MOPA Fiber Laser

,

Water Cooled Pulsed Fiber Laser

Leave a Message
Product Description

650W high power water cooled MOPA pulsed fiber laser



Product introduction:



We offer lasers to Top universities and labs.We OEM to some famous integrator and laser source manufacturers.

High power MOPA pulse fiber laser is a high-power fiber laser using direct electrical modulation semiconductor laser as seed source (MOPA). It has perfect laser characteristics and good pulse shape control ability. Compact structure, convenient operation, overall maintenance free, and can be directly integrated into user equipment. The pulse frequency and pulse width are independently controllable. Through the adjustment and matching of the two laser parameters, it can achieve constant peak power output and can be applied to a wider range of marking substrates. The output power up to 650 makes it particularly advantageous in thin metal cutting, laser cleaning and other applications.



Product features



1. The working pulse width is independently adjustable, with a large adjustable range: 10-500ns

2. Independently adjustable working frequency, high PRF: 10000khz

3. Support the frequency conversion function in the light output state

4. Single pulse energy > 1.5mj, support single pulse energy customization

5. Excellent output beam quality, support customization

6. Both pulse and CW laser output modes

7. Stable output in high temperature and low temperature environment, high stability and reliability



Product application



1. Laser cleaning

2. Lug cutting

3. Metal deep carving and flight marking

4. Sheet metal welding and cutting

5. Ceramic Scribing and resistance fine adjustment

6. Anode stripping and coating stripping

7. Dicing of photovoltaic single crystal / polysilicon

8. Continuous processing of high reaction materials, etc



650W 1.5mj Pulsed MOPA Fiber Laser High Power Water Cooled 0



Technical parameter



Product model Unit SPECTRAWAVE-MOPA-WATER-300 SPECTRAWAVE-MOPA-WATER-500
Central wavelength nm 1060-1080 1060-1080
Average power W 300/350/400/450 500/550/600/650/700
Pulse width ns 10-500 10-500
Frequency range KHz 1-6000 5-10000
Maximum pulse energy mJ 1.5 1.5
Beam quality - <1.8 <2
Spot roundness % >90 >90
Spot diameter mm 6-10 6-10
Power stability % <5 <5
Polarization direction - random random
Armored cable diameter mm 10 10
Length of armor cable m 5 5
Working voltage V 48 48
Working current A <23 <35
Working temperature oC -5-35 -5-35
Storage temperature oC -10-60 -10-60
Refrigeration mode - water-cooling water-cooling
Overall size mm 397×439×88 397×439×88




Product size

650W 1.5mj Pulsed MOPA Fiber Laser High Power Water Cooled 1
