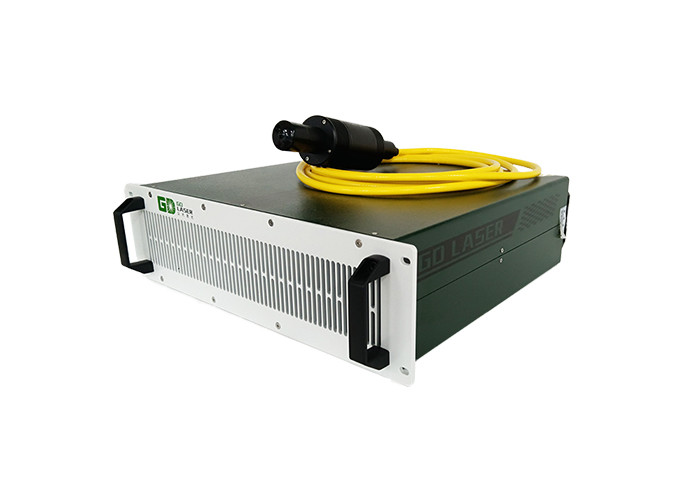

200W 1.5mj Pulsed Mopa Laser Marking Machine Air Cooled

200W 1.5mj Air cooled MOPA pulsed fiber laser

Product introduction:

Pulse width tunable fiber laser is a high-power fiber laser using direct electrical modulation semiconductor laser as seed source (MOPA). It has perfect laser characteristics and good pulse shape control ability. Compact structure, convenient operation, overall maintenance free, and can be directly integrated into user equipment. The pulse frequency and pulse width are independently controllable. Through the adjustment and matching of the two laser parameters, it can achieve constant peak power output and can be applied to a wider range of marking substrates. The output power of up to 300W makes it particularly advantageous in applications such as sheet cutting and laser cleaning.

Product features

1. The working pulse width is independently adjustable, with a large adjustable range: 10-500ns

2. Working frequency is independently adjustable, high repetition frequency: 1-6000khz

3. Support the frequency conversion function in the light output state

4. Single pulse energy > 1.5mj, support single pulse energy customization

5. Excellent output beam quality, support customization

6. Both pulse and CW laser output modes

7. Stable output in high temperature and low temperature environment, high stability and reliability

8. Air cooled, maintenance free

Product application

1. Laser cleaning

2. Lug cutting

3. Metal deep carving and flight marking

4. Sheet metal welding and cutting

5. Ceramic Scribing and resistance fine adjustment

6. Anode stripping and coating stripping

7. Dicing of photovoltaic single crystal / polysilicon

8. Continuous processing of high reaction materials, etc
