800W 2mj Mopa Fiber Laser Engraver Single Mode Water Cooled

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Model Number SPECTRAWAVE-MOPA-WATER
Minimum Order Quantity 1 set
Price Negotiate price
Packaging Details Wooden case packing, 1 set/box
Delivery Time 10 work days
Payment Terms D/P, L/C
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Central Wavelength 1060-1080nm Verage Power 800W
Pulse Width 10-500ns Frequency Range 5-20000KHz
Maximum Pulse Energy 2mj Spot Roundness >90%
High Light

800W MOPA Fiber Laser

,

Mopa Fiber Laser Engraver

,

Water Cooled mopa laser

Leave a Message
Product Description

800W 2mj Single mode MOPA pulsed fiber laser (water cooled)



Product introduction



Our Chief Sceientist Jian Shuisheng is a Academician of Chinese Academy of Sciences.Our founder was a professor of Southern University of Science and Technology.

High power MOPA pulse fiber laser is a high-power fiber laser using direct electrical modulation semiconductor laser as seed source (MOPA). It has perfect laser characteristics and good pulse shape control ability. Compact structure, convenient operation, overall maintenance free, and can be directly integrated into user equipment. The pulse frequency and pulse width are independently controllable. Through the adjustment and matching of the two laser parameters, the constant peak power output can be realized and it can be applied to a wider range of marking substrates. The output power of up to 800W makes it particularly advantageous in thin metal cutting, laser cleaning and other applications.



Product features



1. The working pulse width is independently adjustable, with a large adjustable range: 10-500ns

2. Independently adjustable working frequency, high PRF: 5-20000khz

3. Support the frequency conversion function in the light output state

4. Single pulse energy > 2mj, support single pulse energy customization

5. Excellent output beam quality, support customization

6. Stable output in high temperature and low temperature environment, high stability and reliability



Product application



1. Laser cleaning

2. Lug cutting

3. Metal deep carving and flight marking

4. Sheet metal welding and cutting

5. Ceramic Scribing and resistance fine adjustment

6. Anode stripping and coating stripping

7. Dicing of photovoltaic single crystal / polysilicon

8. Continuous processing of high reaction materials, etc

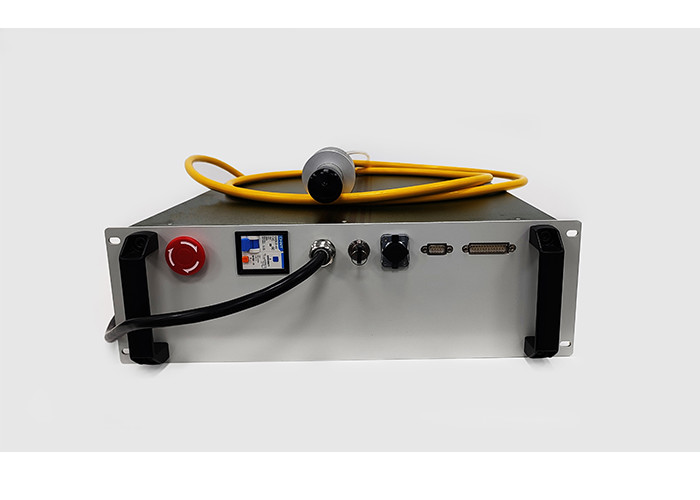

800W 2mj Mopa Fiber Laser Engraver Single Mode Water Cooled 0



Technical parameter



Product model Unit SPECTRAWAVE-MOPA-WATER-750~1000
Central wavelength nm 1060-1080
Average power W 750/800/850/900/1000
Pulse width ns 10-500
Frequency range KHz 5-20000
Maximum pulse energy mJ 2
Beam quality - <2.5
Spot roundness % >90
Spot diameter mm 6-10 (Customizable)
Power stability % <5
Polarization direction - random
Diameter of armor cable mm 10
Length of armor cable m 5 (Customizable)
Working voltage V 220VAC
Working current A <17A
Working temperature oC -5-35
Storage temperature oC -10-60
Refrigeration mode - water-cooling
Overall size mm 600X440X150





Product size

800W 2mj Mopa Fiber Laser Engraver Single Mode Water Cooled 1
