300W MOPA Fiber Laser High Power Water Cooled Pulsed Mopa Laser Engraver

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Minimum Order Quantity 1 set
Price Negotiate price
Packaging Details Wooden case packing, 1 set/box
Delivery Time 10 work days
Payment Terms D/P, L/C
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Central Wavelength 1060-1080nm Verage Power 300W
Pulse Width 10-500ns Frequency Range 10-10000KHz
Maximum Pulse Energy 1.5mj Beam Quality M2<1.8
Refrigeration Mode Water Cooling Overall Size 397×439×88
High Light

300W MOPA Fiber Laser


High Power MOPA Fiber Laser


Pulsed Mopa Laser Engraver

Leave a Message
Product Description

300W high power water cooled MOPA pulsed fiber laser


Product introduction:


High power MOPA pulse fiber laser is a high-power fiber laser using direct electrical modulation semiconductor laser as seed source (MOPA). It has perfect laser characteristics and good pulse shape control ability. Compact structure, convenient operation, overall maintenance free, and can be directly integrated into user equipment. The pulse frequency and pulse width are independently controllable. Through the adjustment and matching of the two laser parameters, it can achieve constant peak power output and can be applied to a wider range of marking substrates. The output power up to 300 makes it particularly advantageous in thin metal cutting, laser cleaning and other applications.


Product features


1. The working pulse width is independently adjustable, with a large adjustable range: 10-500ns

2. Independently adjustable working frequency, high PRF: 10000khz

3. Support the frequency conversion function in the light output state

4. Single pulse energy > 1.5mj, support single pulse energy customization

5. Excellent output beam quality, support customization

6. Both pulse and CW laser output modes

7. Stable output in high temperature and low temperature environment, high stability and reliability


Product application


1. Laser cleaning

2. Lug cutting

3. Metal deep carving and flight marking

4. Sheet metal welding and cutting

5. Ceramic Scribing and resistance fine adjustment

6. Anode stripping and coating stripping

7. Dicing of photovoltaic single crystal / polysilicon

8. Continuous processing of high reaction materials, etc

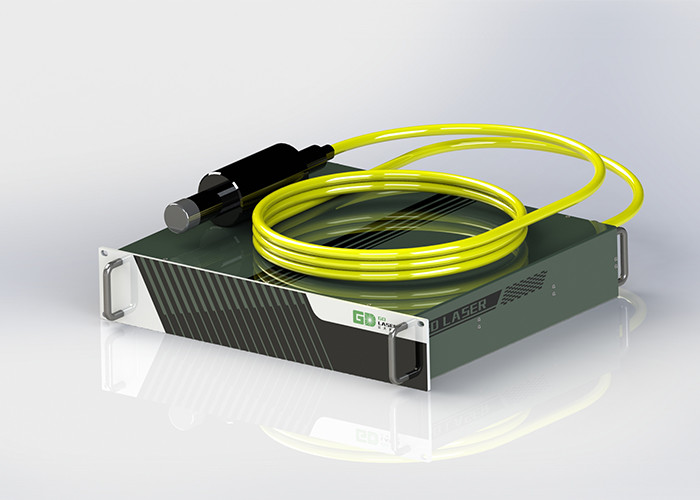

300W MOPA Fiber Laser High Power Water Cooled Pulsed Mopa Laser Engraver 0


Technical parameter


Central wavelength nm 1060-1080 1060-1080
Average power W >300 >500
Pulse width ns 10-500 10-500
Frequency range KHz 1-6000 5-10000
Maximum pulse energy mJ 1.5 1.5
Beam quality - <1.8 <2
Spot roundness % >90 >90
Spot diameter mm 6-10 6-10
Power stability % <5 <5
Polarization direction - random random
Armored cable diameter mm 10 10
Length of armor cable m 5 5
Working voltage V 48 48
Working current A <23 <35
Working temperature oC -5-35 -5-35
Storage temperature oC -10-60 -10-60
Refrigeration mode - water-cooling water-cooling
Overall size mm 397×439×88 397×439×88
