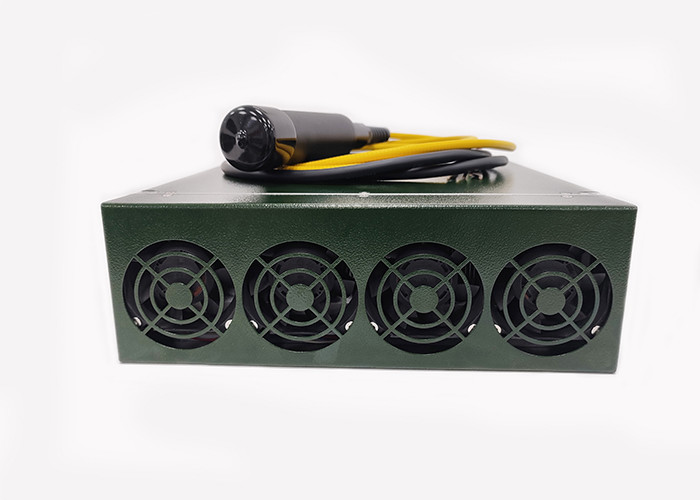

1.5mj 60W MOPA Fiber Laser Air Cooled Anodized Pulsed Fiber Laser

  • 1.5mj 60W MOPA Fiber Laser Air Cooled Anodized Pulsed Fiber Laser
  • 1.5mj 60W MOPA Fiber Laser Air Cooled Anodized Pulsed Fiber Laser
Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Model Number SPECTRAWAVE-MOPA-AIR
Minimum Order Quantity 1 set
Price Negotiate price
Packaging Details Wooden case packing, 1 set/box
Delivery Time 10 work days
Payment Terms D/P, L/C
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Central Wavelength 1060-1080nm Verage Power 60W
Pulse Width 1-500ns Frequency Range 1-10000KHz
Overall Size 296×255×85 Beam Quality M2<1.6
Refrigeration Mode AIR Cooling
High Light

60w mopa fiber laser

,

Anodized mopa fiber laser

,

60w mopa laser
Leave a Message
Product Description

60W 1.5mj Air cooled MOPA pulsed fiber laser



Product introduction:



The low-power MOPA pulse fiber laser launched by Gongda laser, with a power of 60W, has the characteristics of high peak power, multiple pulse widths of 1-500ns, adjustable repetition frequency of 1-10000khz, optional pulse / continuous mode, and online modification of pulse width. It can be widely used in the field of solar photovoltaic, thin film cutting, thin plate material cutting, material surface cleaning, surface roughening, fine marking, and laser deep engraving.



Product application



1. Film cutting

2. Anodized aluminum oxide blackening

3. Fine marking and color marking

4. Roughening treatment

5. Paint stripping

6. Precision cleaning

7. Solar energy and photovoltaic scribing



1.5mj 60W MOPA Fiber Laser Air Cooled Anodized Pulsed Fiber Laser 0



Technical parameter



Product model Unit SPECTRAWAVE-MOPA-AIR-20/60/70/80
Central wavelength nm 1060-1080 1060-1080 1060-1080 1060-1080
Average power W >20 >60 >70 >80
Pulse width ns 1-500 1-500 2-500 2-500
Frequency range KHz 1-10000 1-10000 1-10000 1-10000
Maximum pulse energy mJ 0.5 1.5 1.5 1.5
Beam quality - <1.3 <1.6 <1.6 <1.6
Spot roundness % >90 >90 >90 >90
Spot diameter mm 6-7 6-8 6-10 6-10
Power stability % <5 <5 <5 <5
Polarization direction - random random random random
Armored cable diameter mm 6 7/10 10 10
Length of armor cable m 2(customizable) 5(customizable) 5(customizable) 5(customizable)
Working voltage V 48 48 48 48
Working current A <5 <8 <10 <10
Working temperature oC -5-35 -5-35 -5-35 -5-35
Storage temperature oC -10-60 -10-60 -10-60 -10-60
Refrigeration mode - Air cooling Air cooling Air cooling Air cooling
Overall size mm 296×255×85 296×255×85 358×300×118 358×300×118
