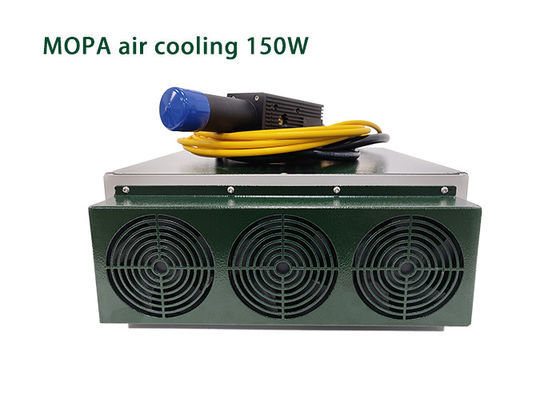

150W High peak power MOPA pulsed fiber laser

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Model Number SPECTRAWAVE-HIGH PEAK POWER
Minimum Order Quantity 1 set
Price Negotiate price
Packaging Details Wooden case packing, 1 set/box
Delivery Time 10 work days
Payment Terms D/P, L/C
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Central Wavelength 1050-1070nm Verage Power 150W
Pulse Width 1-500ns Frequency Range 5-10000KHz
Maximum Pulse Energy 1mj Beam Quality M2<1.4
Refrigeration Mode WATER Cooling Overall Size 450×280×100
Leave a Message
Product Description

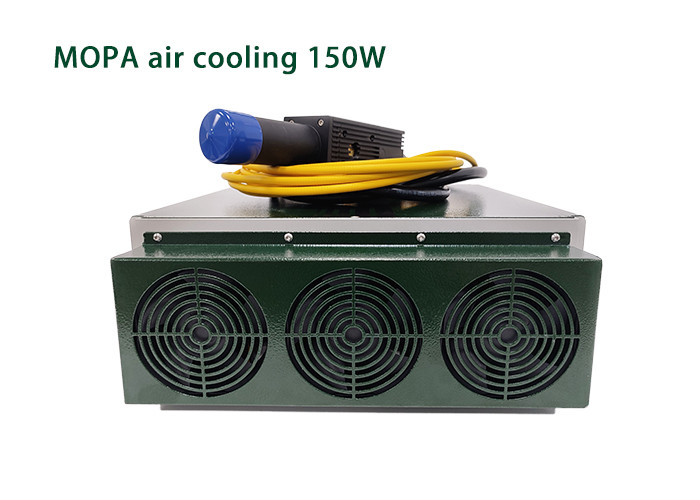

150W High peak power MOPA pulsed fiber laser



Product introduction:



SPECTRAWAVE-HIGH PEAK POWER-150-HPP pulse width tunable fiber laser is a high-power fiber laser using direct electrical modulation semiconductor laser as seed source (MOPA), which has perfect laser characteristics and good pulse shape control ability. Multiple power options, compact structure. Easy to operate, maintenance free, and can be directly integrated into user equipment; With the characteristics of fast response speed, excellent output beam quality, large single pulse energy, high peak power output, etc., the laser can meet the needs of a wide range of laser applications in the market.



Product features



1 Working pulse width independently adjustable: 1-500ns

2. Independently adjustable working frequency, high PRF: 10000khz

3. Single pulse energy > 1.0mj

4 High peak power, up to 100kW

5. Excellent output beam quality

6 Both pulse and CW laser output modes

7. Stable output in high temperature and low temperature environment, high stability and reliability

8. Water cooled, maintenance free



Product application



1. Glass drilling

2. Spot welding of abnormal metal

3. Stripping anode and coating

4. Ceramic Scribing and resistance fine adjustment

5. Glass dicing and pole lug cutting

6. Dicing of photovoltaic single crystal / polysilicon

7. Metal deep carving, marking, welding and cutting

8. Continuous processing of high reaction materials, etc





Technical parameter



Product model Unit

SPECTRAWAVE-HIGH PEAK POWER-80/150-HPP

Central wavelength nm 1050-1070
Average power W 80 150
Highest peak KW >100
Pulse width ns 1-500
Frequency range KHz 5-10000
Maximum pulse energy mJ 1
Beam quality - <1.4
Spot roundness % >90
Spot diameter mm 6-10 (Customizable)
Power stability % <5
Polarization direction - Random
Armored cable diameter mm 10
Length of armor cable m 2 (Customizable)
Working voltage V 48
Working current A <8 <13
Working temperature oC 0-35
Storage temperature oC -10-60
Refrigeration mode - Water cooling
Overall size mm 450×280×100




Product size
