300W Single Person Backpack Laser Obstacle Remover

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Model Number Backpack laser obstacle remover 300W
Minimum Order Quantity 1 set
Price Negotiate price
Packaging Details Wooden case packing, 1 set/box
Delivery Time 20work days
Payment Terms D/P, L/C
Supply Ability 100 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Power 300W Laser Wavelength 1080nm
Working Effective Distance 0-100m Beam Quality M2 <1.1@14um
Indicator Red Light Power (uW) >100 Host Size 400*350*200mm
High Light

Single Person Laser Obstacle Remover

,

Backpack Laser Obstacle Remover

,

300W Laser Obstacle Remover

Leave a Message
Product Description

300W Single person backpack laser obstacle remover



Product introduction of laser obstacle remover:



Gongda laser backpack type 300W individual laser obstacle removal machine adopts highly integrated design.

The self-developed compact 300W fiber laser+self-developed refrigeration system+lithium battery module are integrated into a backpack type obstacle removal system, and the weight of the entire system is controlled within 20KG (except for the gun head). The duration of a single 300W power operation is 5-10min (related to the ambient temperature), and the total duration of a single charging battery can support the full power operation of the system to exceed 20min, and support the function of quick battery replacement.


Product features of laser obstacle remover



1. Portable design, compact structure, overall weight of 20KG, can be operated by one person.

2. The working distance can reach 100 meters.

3. The battery can be quickly replaced, and the single charge support system can run for 20 minutes.

4. The operation is simple, flexible and efficient.



Product application of laser obstacle remover


1.Cleaning of foreign matters in the power grid (bird's nest, honeycomb, floating objects)

2.Removal of foreign matters in high-speed railway operation

3.Remote foreign matter removal

4.Remove the tree block

5.Laser deicing

6.ammunition laser removal device.



Product parameters of laser obstacle remover



Model Backpack laser obstacle remover
Average power (W) 300W
Operating mode continuity
Central wavelength (nm) 1080(±10)
Bandwidth 3dB (nm) <6
Long term power stability (%) <3
Beam quality M2 <1.1@14um
Indicator red light power (uW) >100
Length of armored cable (m) 2
Battery voltage DC 24V
Operating ambient temperature (℃) 10~42
Refrigeration mode Internal circulation
Laser size (mm) 400*350*200
Net weight of laser (kg) <20
Single 500W power output duration (min) 5~10min
Operation duration of single battery charge (min) <20
Handheld output head Fixed focus/zoom

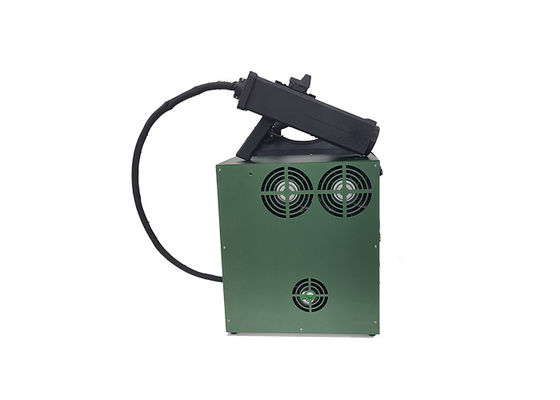

Product appearance dimension

300W Single Person Backpack Laser Obstacle Remover 0
