100W Air Cooled Pulsed Mopa Fibre Laser 1-10000KHz
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Central Wavelength | 1060-1080nm | Verage Power | 100W |
|---|---|---|---|
| Pulse Width | 2-500ns | Frequency Range | 1-10000KHz |
| Maximum Pulse Energy | 1.5mj | Beam Quality | M2<1.6 |
| Refrigeration Mode | AIR Cooling | ||
| High Light | 10000KHz Mopa Fibre Laser,Air Cooled Mopa Fibre Laser,100W MOPA Laser |
||
Product Description

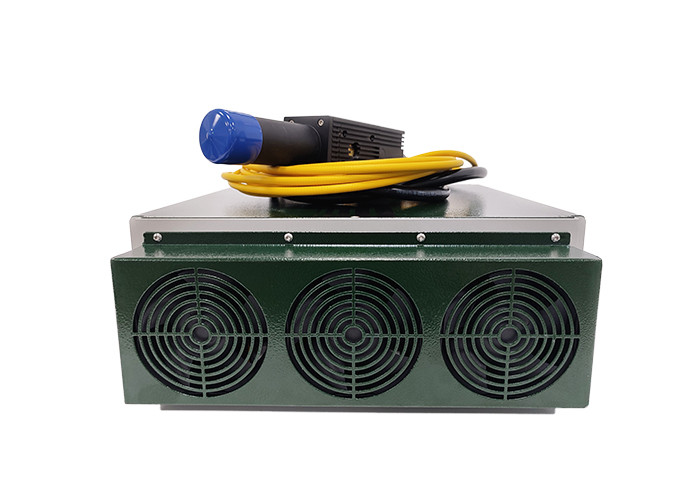

100W Air cooled MOPA pulsed fiber laser
Product introduction:
The 100W air-cooled MOPA pulse fiber laser launched by Gongda laser It has high peak power, multiple pulse widths of 2-500ns, adjustable repetition frequency of 1-10000khz, optional pulse / continuous mode, online modification of pulse width, high beam quality, air-cooled design, integrated structure and small size. It can be widely used in solar photovoltaic field, thin film cutting, thin plate material cutting, material surface cleaning, surface texturing, fine marking, laser deep engraving.
Product application
1.Pole piece cutting
2. Anodized aluminum oxide blackening
3. Fine marking and color marking
4. Thin metal cutting and welding
5. Paint stripping
6. Precision cleaning
7. Solar energy and photovoltaic scribing
Technical parameter
| Product model | UnitSPECTRAWAVE-MOPA-AIR-100/120 | ||
| Central wavelength | nm | 1060-1080 | 1060-1080 |
| Average power | W | >100 | >120 |
| Pulse width | ns | 2-500 | 2-500 |
| Frequency range | KHz | 1-10000 | 1-10000 |
| Maximum pulse energy | mJ | 1.5 | 1.5 |
| Beam quality | - | <1.6 | <1.6 |
| Spot roundness | % | >90 | >90 |
| Spot diameter | mm | 6-10 | 6-10 |
| Power stability | % | <5 | <5 |
| Polarization direction | - | random | random |
| Armored cable diameter | mm | 10 | 10 |
| Length of armor cable | m | 5 | 5 |
| Working voltage | V | 48 | 48 |
| Working current | A | <15 | <15 |
| Working temperature | oC | -5-35 | -5-35 |
| Storage temperature | oC | -10-60 | -10-60 |
| Refrigeration mode | - | Air cooling | Air cooling |
| Overall size | mm | 358×300×118 | 358×300×118 |
Product size
