40W 70W Triple Pulse Nanosecond Green Laser 532nm Fiber Laser Source for Photovoltaic rocessing

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Model Number GNPL-40-30-S-W
Minimum Order Quantity 1 set
Price Price negotiable
Packaging Details Wooden case packing, 1 set/box
Delivery Time 20 work days
Payment Terms D/P, L/C
Supply Ability 100 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wavelength 532nm Beam Quality M²<1.3
Spot Roundness 90% Pulse Width <2.5ns
Repetition Frequency 500KHz Pulse Energy 100uJ
Overall Size 705×368×161mm
Leave a Message
Product Description

Product Description:

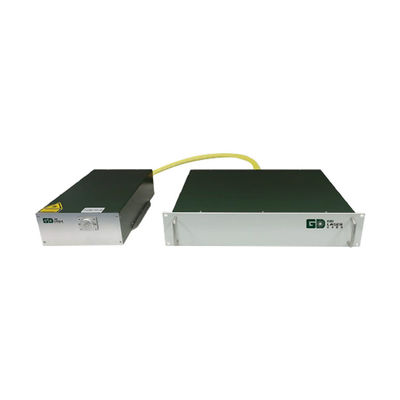

40W 70W Triple Pulse Nanosecond Green Laser 532nm Fiber Laser Source for Photovoltaic rocessing 0



Gongda laser industrial grade fiber green nanosecond lasers, with stable and reliable characteristics, support high precision processing while ensuring the economy. The laser adopts an optical and electrical integrated design, 3burst pulse mode, and pulse width of 700ps~1.5ns, this series of products can be widely used in material micromachining, solar/photovoltaic industry processing, glass-based ink removal/marking, FPC overlay film cutting, PVD removing, plastics marking, glass burring.



Features:

  1. Short wavelength, narrow pulse width, more fine processing
  2. Pulse energy 30uJ
  3. High frequency, more than 1.2MHz.
  4. Water cooling, compact structure, stable work
  5. Three pulse modes are more suitable for photovoltaic cell laser grooving applications.

Technical Parameters:


Model Unit GNPL-40-30-S-W GNPL-70-35-S-W GNPL-100-30-S-W
Wavelength nm 532nm
Average Power W 50 80 100
Work mode - 3 Burst
Pulse Duration ns 0.7~1.5 0.7~1.5 0.7~1.5
Repetition frequency KHz 1200 2000 3000
Pulse Energy uJ 30 30 30
Beam Quality - M2<1.2
Beam Circularity % 90
Beam Diameter mm 2~6,1/e2
Polarization Extinction Ratio dB 18
Polarization State   Linear
Pulse Stability % <3%RMS
Power Stability % <3%RMS
Operating Temp 10℃~35℃
Cooling mode - Water Cooling
Size mm 482x397x88+222x400x88


Applications:

  • Material Micromachining
  • Solar/Photovoltaic Industry Processing
  • Glass-based ink removal/marking
  • FPC Overlay Film Cutting
  • PVD Removal

Support and Services:

- Assistance with installation, setup, and calibration of the laser system

- Troubleshooting and diagnosis of any issues with the laser system

- Repair and maintenance services for the laser system

- Training and education on the proper use and maintenance of the laser system

- Consultation services for optimizing laser system performance and enhancing application capabilities

Packing and Shipping:

Product Packaging:

  • Green Fiber Laser
  • Power cord
  • User manual
  • Protective goggles
  • Shipping box

Shipping:

  • Shipping carrier: FedEx
  • Shipping method: Ground
  • Shipping time: 3-5 business days
  • Shipping cost: $15.00
  • Tracking number: Provided after shipment



40W 70W Triple Pulse Nanosecond Green Laser 532nm Fiber Laser Source for Photovoltaic rocessing 1





FAQ:

Question 1: What is the brand name of this product?

Answer 1: The brand name of this product is GD laser.

Question 2: What is the model number of this product?

Answer 2: The model number of this product is EO-LIGHT-CW-2.

Question 3: Is this product certified?

Answer 3: Yes, this product is CE-certified.

Question 4: Where is this product manufactured?

Answer 4: This product is manufactured in Shenzhen, China.

Question 5: What is the minimum order quantity for this product?

Answer 5: The minimum order quantity for this product is 1 set.

Question 6: What are the available payment terms for this product?

Answer 6: The available payment terms for this product are D/P and L/C.
