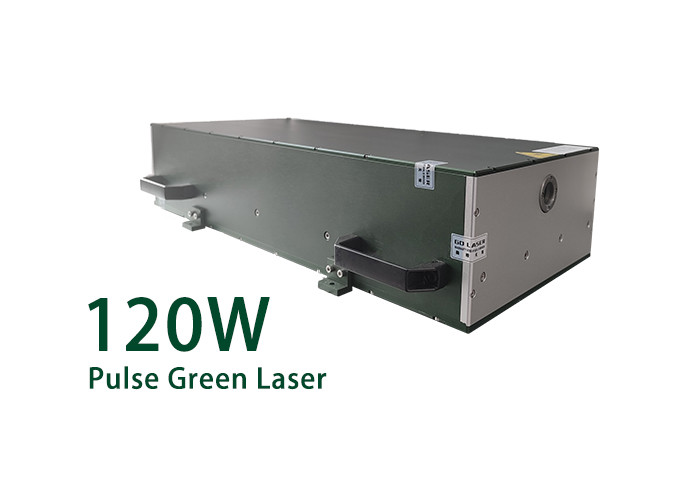

120W Single Pulsed Nanosecond Green Fiber Laser for Engraving Cutting Marking

Place of Origin SHENZHEN, CHINA
Brand Name GD laser
Certification CE
Model Number EO-LIGHT-NANO-1
Minimum Order Quantity 1 set
Price Price negotiable
Packaging Details Wooden case packing, 1 set/box
Delivery Time 20 work days
Payment Terms D/P, L/C
Supply Ability 100 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wavelength 532nm Beam Quality M²<1.3
Spot Roundness 90% Pulse Width <2.5ns
Repetition Frequency 500KHz Pulse Energy 100uJ
Overall Size 705×368×161mm
Leave a Message
Product Description

Product Description:



120W Single Pulsed Nanosecond Green Fiber Laser for Engraving Cutting Marking 0



The 120W Green Nanosecond Fiber Lasers by Gongda Laser are industrial-grade fiber green nanosecond lasers. They have stable and reliable characteristics. They ensure the economy while supporting high-precision processing. The laser uses an optical and electrical integrated design. It can customize single pulse mode and 3burst pulse mode. The pulse energy is more than 150 μJ. The pulse width is 400ps to 2ns. This series of products can be used in material micromachining, solar/photovoltaic industry processing, glass-based ink removal/marking, FPC cover film cutting, PVD removal, plastic marking, and glass texturing.



Features:

  1. Narrow pulse width (1ns-2ns)
  2. Maximum single pulse energy: 150uJ
  3. High PRF: 2.2MHz
  4. Water-cooled, compact structure, stable operation5. Integrated optical and electrical design

Technical Parameters:


Product model Unit EO-LIGHT-NANO-1

Wavelength
nm 532nm
Average power W 50 60 70 80 120
Working mode - 1 Burst 1 Burst 3 Burst 3 Burst 3 Burst
Pulse width ns <2.5 <2.5 <2.5 <2.5 <2.5
Repetition frequency KHz 500 500 500 2000 2500
Pulse energy uJ 100 120 35 40 50
Beam quality - M²<1.3
Spot roundness % 90

Beam diameter
mm 3~6,1/e2
Polarization ratio   >100:1
Pulse stability % <2%RMS
Power stability % <2%RMS
Working temperature 0~35
Refrigeration mode - Water Cooling

Overall size
mm 705×368×161


Applications:

  • Making tiny cuts and shapes in materials
  • Working on solar panels and power cells
  • Taking ink off glass and marking it
  • Cutting thin plastic covers
  • Taking off metal coatings
  • Making marks on plastic
  • Making patterns on glass


Support and Services:

  • We show you how to use the product with guides
  • We help fix problems from far away using online tools
  • We fix things when they break
  • We sell extra parts when you need them
  • We give you better computer programs when ready
  • We help you if things break, both during and after the safety time

Packing and Shipping:

Product Packaging:

  • 1 Green Fiber Laser
  • 1 Power Cord
  • 1 User Manual

Shipping:

  • Shipping Method: UPS Ground
  • Delivery Time: 3-5 business days
  • Shipping Cost: $25.00
  • Tracking Number: You get it after the item ship

    120W Single Pulsed Nanosecond Green Fiber Laser for Engraving Cutting Marking 1


FAQ:

Q1. What is the brand name of this laser product?

A1. The brand name is GD laser.

Q2. What is the model number of this laser product?

A2. The model number is EO-LIGHT-NANO-1.

Q3. Does this laser product have any certification?

A3. Yes, it has CE certification.

Q4. What is the place of origin of this laser product?

A4. It is made in SHENZHEN, CHINA.

Q5. What is the minimum order quantity of this laser product?

A5. You need to order at least 1 set.

Q6. Is the price of this laser product negotiable?

A6. Yes, you can discuss the price with us.
