2000W Handheld Laser Welding Machine Internal Circulation portable laser welding machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power Consumptlon(kW) | 7.5KG | Average Power（W） | 2000W |
|---|---|---|---|
| Length Of Armor Cable(m) | 5(Customizable) | Beam Quality M2 | <1.3@20um |
| Overall Size（mm） | 310*726*721 | Net Weight（kg） | 85±5kg |
| High Light | 2000W Handheld Laser Welding Machine,Internal Handheld Laser Welding Machine,Circulation Portable Laser Welding Machine |
||
Product Description

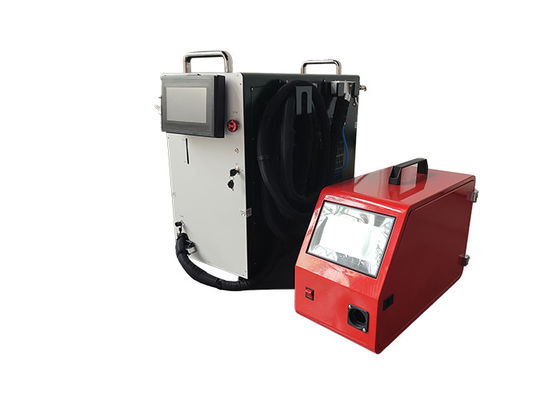

2000W Portable internal circulation handheld laser welding machine
Handheld laser machine
In view of the large volume and other shortcom- ings of the current handheld welding laser equip- ment,Gongdalaser has launched
ycfl- 2000W-smart continuous fiber laser using internal circulation refrigeration (without external refrigeration).It has the advantages of integration and portability,and adopts a uniqueair-cooled output head.It can realize real walking and welding only by supporting welding gun and other equipment.
Product configuration
1000W-2000W power
5m/10m optical fiber
Optional welding wire machine
The welding nozzle can be replaced
Suitable for welding materials
It is applicable to the welding of thick materials, thin materials, high reaction materials and dissim- ilar metals without wire filling. It can weld metal materials such as stainless steel/ carbon steel/ aluminum/aluminum alloy/copper/ galvanized sheet.
|
Material Science |
Weld thickness reference |
|
| 1000W-2000W | ||
| Stainless steel | 0.5-6mm | |
| carbon steel | 0.5-6mm | |
| Aluminum and Alloys | 0.5-5mm | |
| copper | 0.3-1.5mm | |
Technical parameter
| MODEL | YCFL-1000-SMART | YCFL-1500-SMART | YCFL-2000-SMART |
| Average power(W) | 1000W | 1500W | 2000W |
| Working mode | Continuous/modulation | ||
| Maximum modulation frequency(KHz) | 20 | ||
| Central wavelength(nm) | 1080(±10) | ||
| Bandwidth 3dB(nm) | <6 | ||
| Long term power stability(%) | <3 | ||
| Beam quality M2 | <1.15@14um | <1.3@20um | |
| Indicated red light power(uW) | >100 | ||
| Output mode | Standard QBH | ||
| Optical fiber output core diameter(um) | 50(20/25/100) | ||
| Length of armor cable(m) | 5(Customizable) | ||
| Working voltage (VAC) | 220V | ||
| Rated power consumptlon(kW) | 3.5 | 6 | 7.5 |
| Working ambient temperature(℃) | 5~45 | ||
| Cooling mode | Internal circulation | ||
| Overall size(mm) | 310*726*721 | ||
| Net weight(kg) | 70±5 | 80±5 | 85±5 |
